FusionONE+ Model 3503

Actual colors may vary from the images shown due to monitor settings

Actual colors may vary from the images shown due to monitor settings

Models available: 3502, 3503

FusionONE+ Power Exam Tables

Fusing the accessibility of a power table and the affordability of a fixed-height box table, the FusionONE+ Power Exam Table offers the features healthcare providers need most.

Featuring a power back, this hi-lo exam table can accommodate multiple specialties. It enables simple ADA access and ease of examination for patients of all ages and abilities. The power backrest makes it easy to lie patients back and sit them up safely and comfortably.

FusionONE+ Series:

  • Model 3502
  • Model 3503
COMPARE PRODUCTS    REQUEST A QUOTE    REQUEST A TIP CARD

Features at a glance

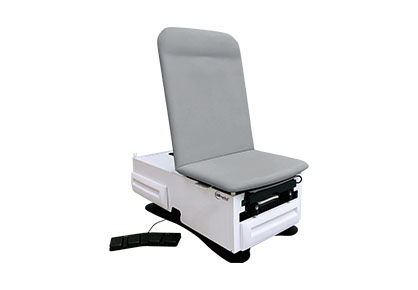

FusionONE+ Model 3502
FusionONE+

Model Number: 3502

  • Power hi-lo and power backrest
  • Two-function foot control
  • 18”-21” (45.7 cm-53.3 cm) paper roll holder
  • Large, reversible side drawer and large front drawer
  • Drain pan: plastic 1.5” deep (3.8 cm)
  • Durable, galvanized steel construction
  • Removable, seamless upholstered top with PreFixx® Protective Finish
  • Heavy-gauge steel pull-out leg extension
  • Easy-clean powder coat enamel surfaces
  • Foldaway stirrups with four lateral positions and adjustable length
FusionONE+ Model 3502
FusionONE+

Model Number: 3503

  • Power hi-lo and power backrest
  • Two-function foot control
  • 18”-21” (45.7 cm-53.3 cm) paper roll holder
  • Large, reversible side drawer and large front drawer
  • Drain pan: plastic 1.5” deep (3.8 cm)
  • Durable, galvanized steel construction
  • Removable, seamless upholstered top with PreFixx® Protective Finish
  • Heavy-gauge steel pull-out leg extension
  • Easy-clean powder coat enamel surfaces
  • Foldaway stirrups with four lateral positions and adjustable length
  • PLUS
  • Drawer warmer
  • Pelvic tilt (7°)
  • Electrical receptacle

Compare all table features

Available in

Soft Linen swatch

Soft Linen

Cement swatch

Smoky Cashmere

Warm Sand swatch

Warm Sand

Creamy Latte swatch

Creamy Latte

Chocolate Truffle swatch

Chocolate Truffle

Lemon Meringue swatch

Lemon Meringue

Cherry Blossom swatch

Cherry Blossom

Blue Skies swatch

Blue Skies

Lakeside Blue swatch

Lakeside Blue

Twilight Blue swatch

Twilight Blue

Morning Fog swatch

Morning Fog

Fine Wine swatch

Fine Wine

True Graphite swatch

True Graphite

Classic Black swatch

Classic Black

Mint Leaf swatch

Mint Leaf

Deep Forest swatch

Deep Forest

See the FusionONE+™ Power Exam Table LIVE!

Click here to register for one of our live, online demos.

See specifications and accessories

Specifications

Height: min. 19” (48.3 cm) at seat max. 32” (81.3 cm) Width: 28” (71.1cm)
Length: 58”-76” (147.3 cm-193 cm) with leg rest extended Leg rest: 18” W x 18” D (45.7 cm W x 45.7 cm D
Storage drawer (front): 18” W x 12” D x 3” H (45.7 cm x 30.5 cm x 7.6 cm) Storage drawer (side): 17.5” W x 21” D x 5” H (44.5 cm x 53.3 cm x 12.7 cm)
Single column electro-magnetic actuator Electrical: 120 VAC 10 AMP / 220 VAC 5.5 AMP, 50-60 Hz
Weight capacity: 500lb (226.8kg) Net weight: 350lb (159kg)
Shipping weight: 390lb (177kg) Shipping dimensions: 30” W x 64” L x 31” H (76.2 cm x 162.6 cm x 78.7 cm)
Accessories
582 Hand Control 585 Armrests
590 Welch Allyn Light Bracket capabilities for #48955 (patient left) 591 Welch Allyn Light Bracket capabilities for #48955 (patient right)
